Elite Stackable Solar Energy Storage System

Product Overview Product Specifications Enquire now

Elite Stackable Solar
Energy Storage System

Single & Three Phase

10 ms UPS Level Switching

Providing uninterrupted power for critical loads.

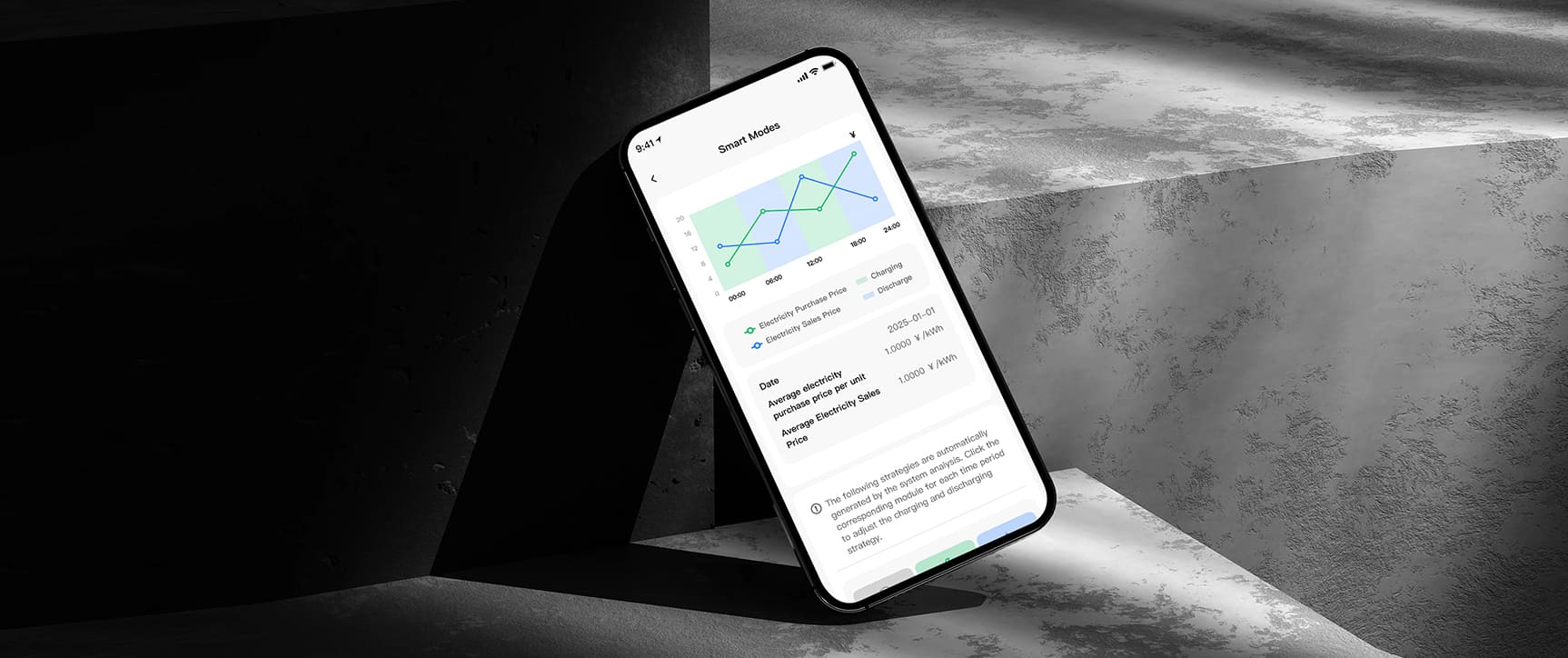

Dynamic Energy Management

Integrated with smart EMS, adaptable to diverse market requirements.

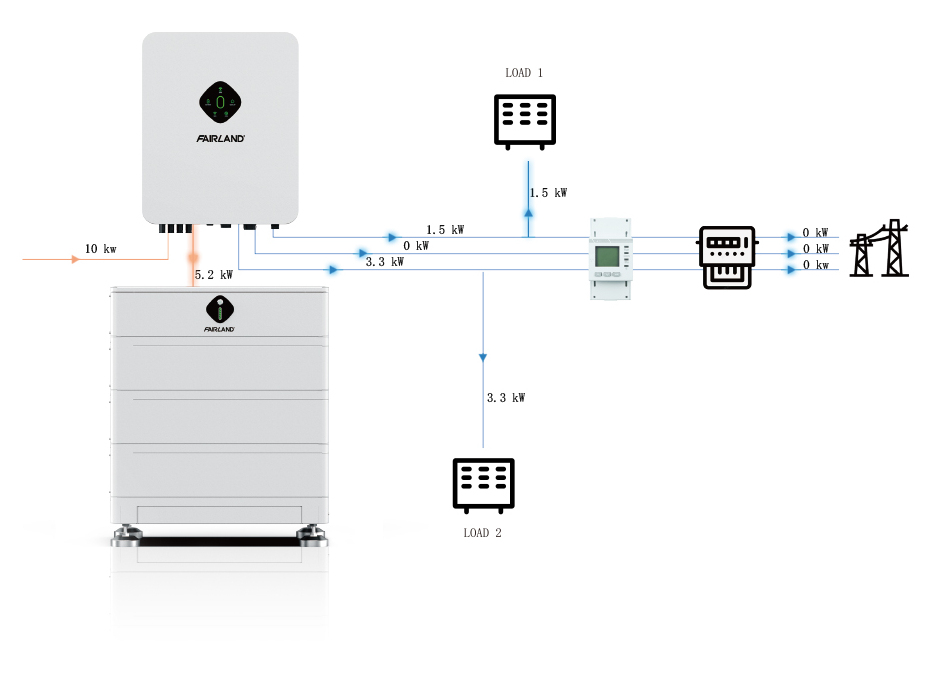

100% unbalanced load

Draw 100% rated power through one phase alone; no forced load balancing required.

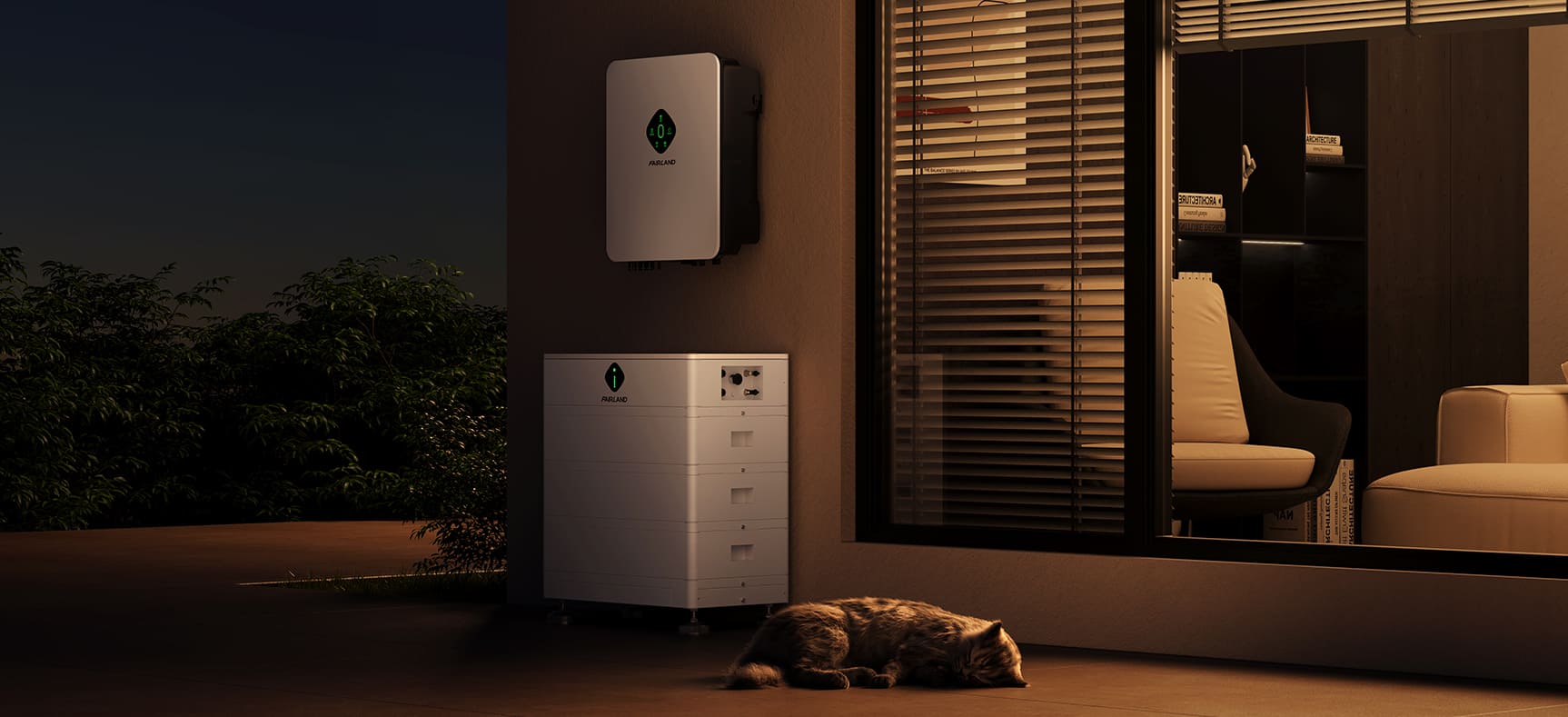

Ultra-Quiet Design

Fanless design with max noise ≤ 35 dB.

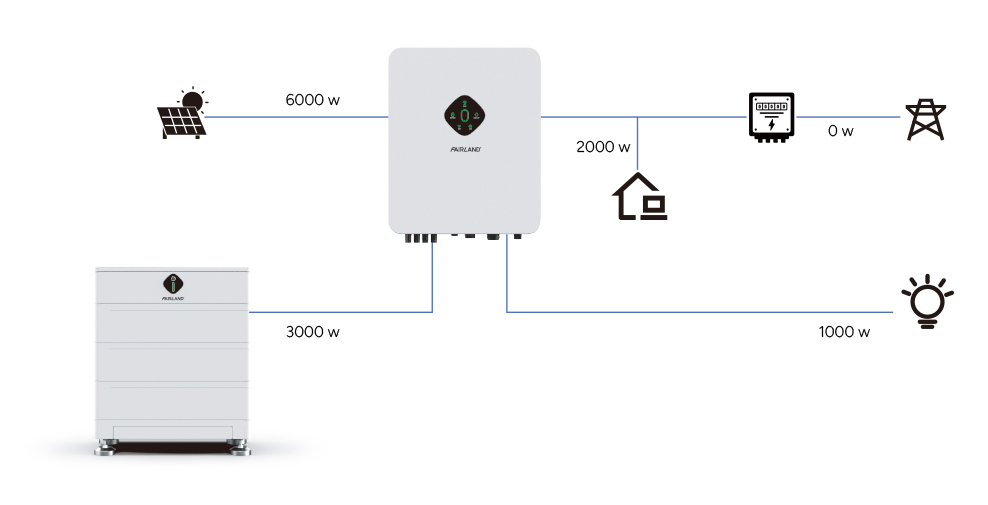

Zero Power Feeder

Grid-friendly with no reverse power flow.

VPP Ready

Compatible with virtual power plant integration.

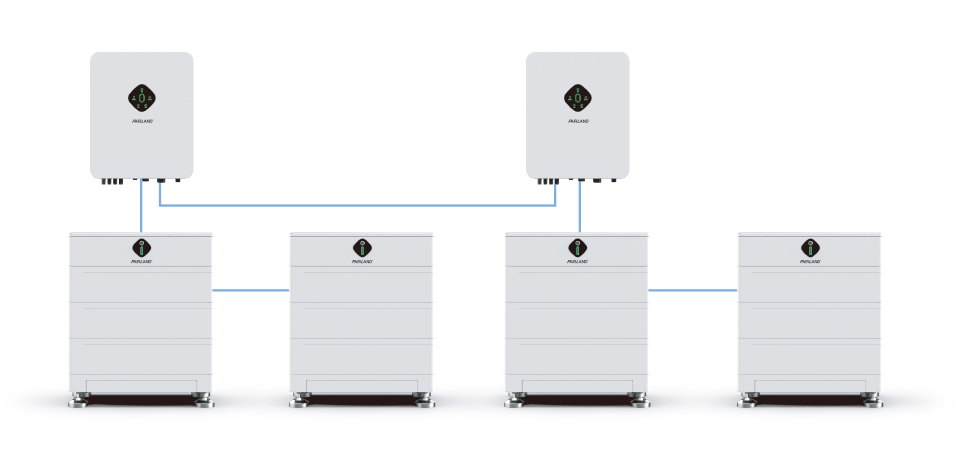

Highly Scalable
System Design

Flexible expansion of both inverter power and battery capacity.

Stackable Battery (HV)

Model

HVB9.6

HVB12.8

HVB16.0

HVB19.2

HVB22.4

HVB25.6

Usable energy* (kWh)

9.6

12.8

19.2

22.4

25.6

Depth of discharge

Max.100% DOD (settable)

Cell type

LFP (LiFePO₄)

Warranty***

10 Years

Single Phase Hybrid Inverter

Model

XLiS3

XLiS3.6

XLiS4

XLiS5

XLiS6

PV Input

Max. PV input voltage (V)

600

MPPT voltage range (V)

40 - 560

Battery (input/output)

Max. charge/discharge current (A)

30/30

Max. charge/discharge power (W)

6600/6600

Three Phase Hybrid Inverter

Model

XLiT5

XLiT6

XLiT8

XLiT10

PV Input

Max. PV input voltage (V)

1000

MPPT voltage range (V)

150 - 950

Battery (input/output)

Max. charge/discharge current* (A)

30/30

Max. charge/discharge power (W)

7500/6000

9000/7200

10600/10600
