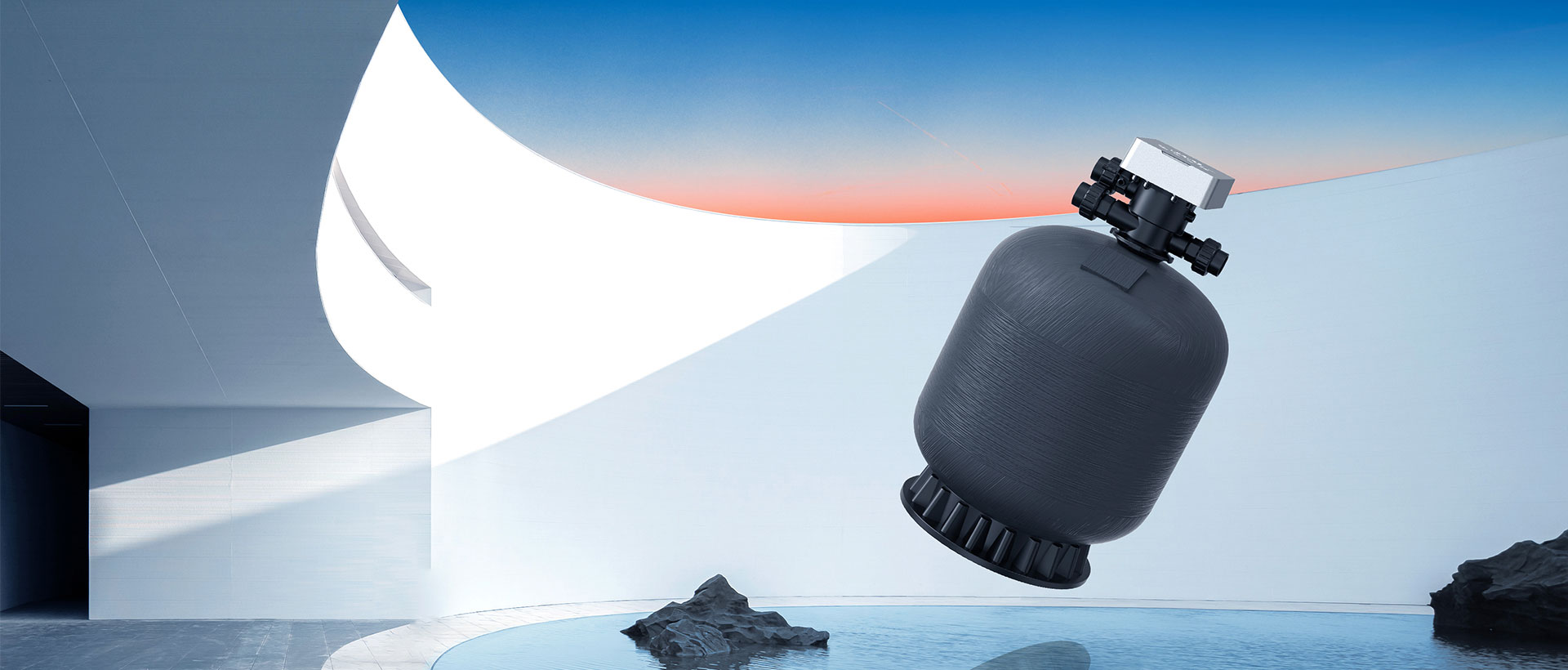

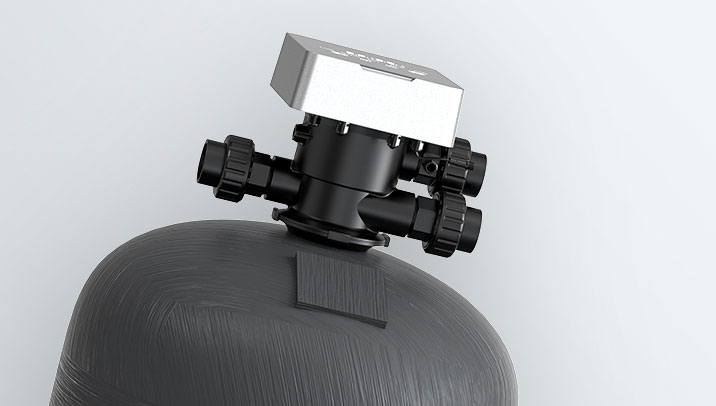

Automatic Multiport Valve
iWash

1

Touch Backwash
5

Year Warranty

watch the video

INVERCLEAR Technology

iWash works collaboratively with the inverter pool pump
integrating the circulation and filtration system into a one-stop smart control

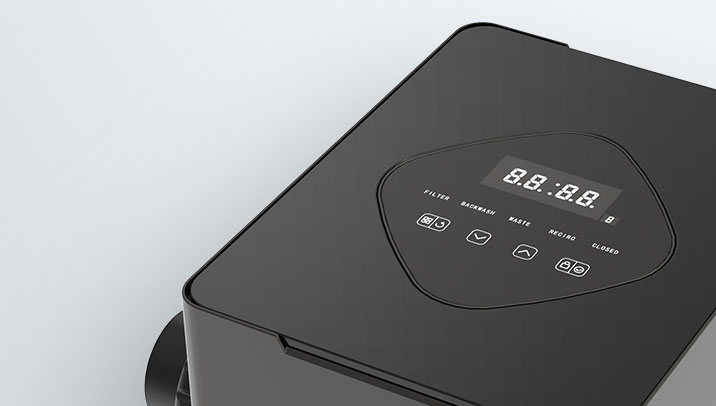

Full-touch Pad Design

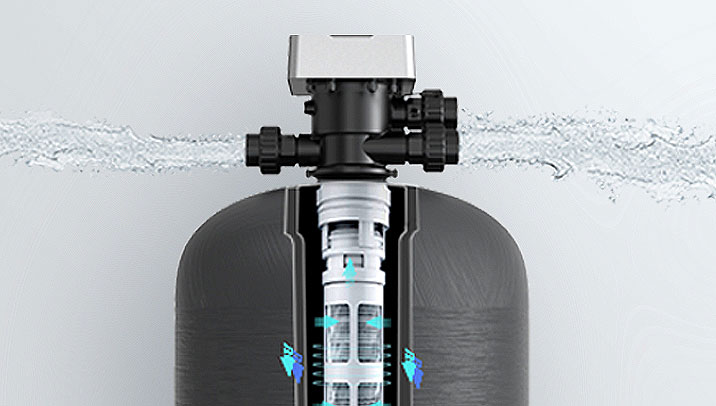

The intelligent sand tank iWash incorporates unprecedented visual and interactive design, creating a unique full-screen experience in the field of automatic sand tank head solutions. iWash combines 5 major modes: filtration (FILTER), automatic flushing (BACKWASH), emptying (WASTE), circulation (RECIRC), and closing (CLOSED).
1 Setting for 365-day Clear

- Pressure Detection :The filter can run backwash cycles automatically before it meets the maximum pressure level for safety uses.
- Timer :Users can set the backwash timer anytime as the inverter pool pump is in the silent, energy-saving 24-hour operation.

Product Specifications

Base	Backwash Flow	Operation Pressure	Applicable Filter Size	Power Supply	Power Adapter Output	Humidity	IP rating	Salt concentration	Ambient Temperature	water Temperature
Side-mounted	24m3/h	≤0.25MPa	454-900mm	AC100~240V/50~60Hz	DC24V,1.5A	≤95%(@25℃)	IP65	≤0.5%	-10~50℃	5~50℃

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	H(mm)	K(mm)
GS700	903	733	497	705	90	350	712	130	125
GS900	1115	1050	714	921	125	405	837	130	195

＊The above parameters will be updated with technological iterations. The final product parameters shall be subject to the information on the equipment nameplate.
