Elite Stackable Residential Energy Storage System

Product Overview Product Specifications Download Enquire now

Elite Stackable Residential
Energy Storage System

Super Off-grid Load Carrying

＜10 ms UPS level switch

providing emergency power when mains failure

Various Operation Function

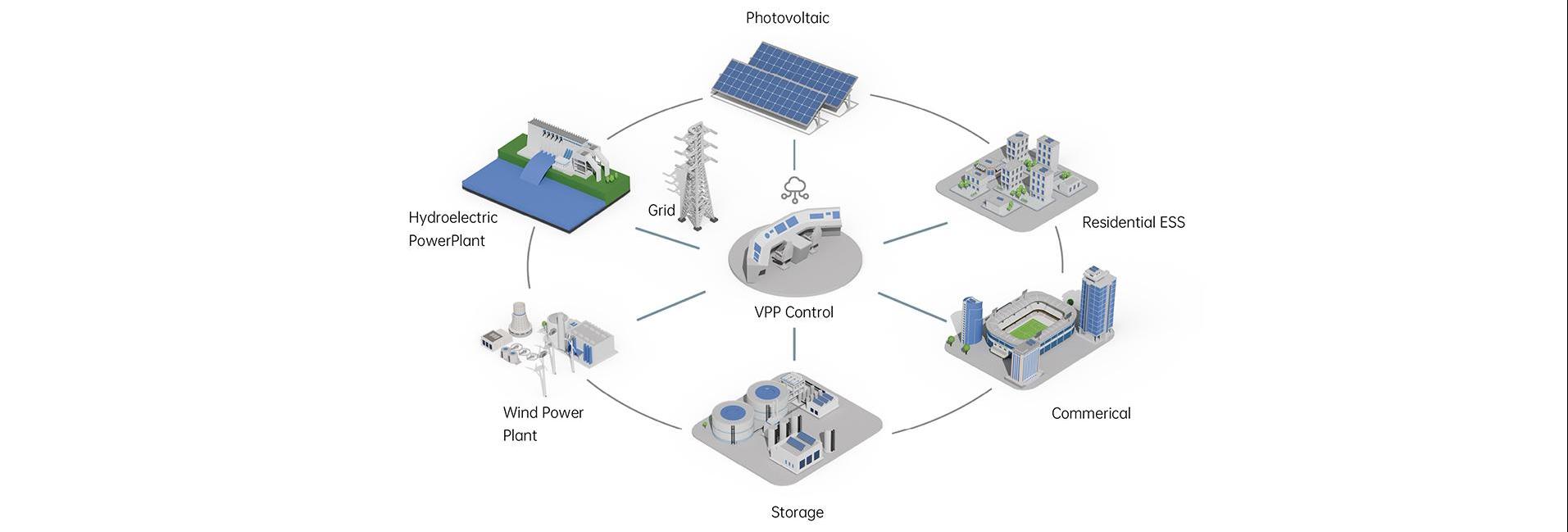

4 friendly functions: Self-generated, Zero power feeder, VPP, Battery-free ＆ Gridless

Real-time status display

Easy Wi-Fi configuration via APP

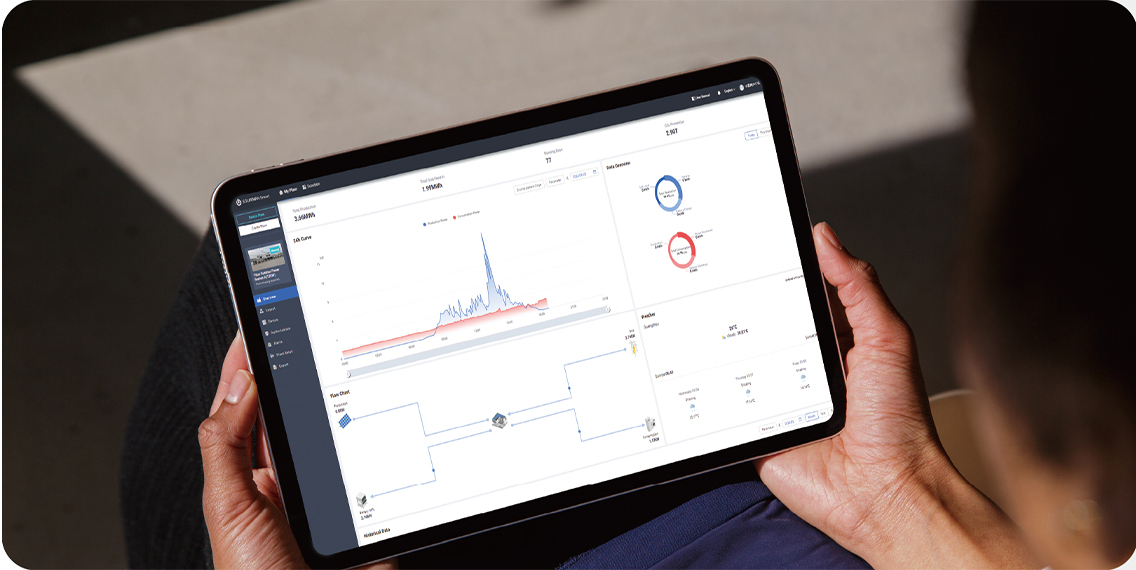

Support 7*24H monitoring

Remote diagnostic and system upgrade

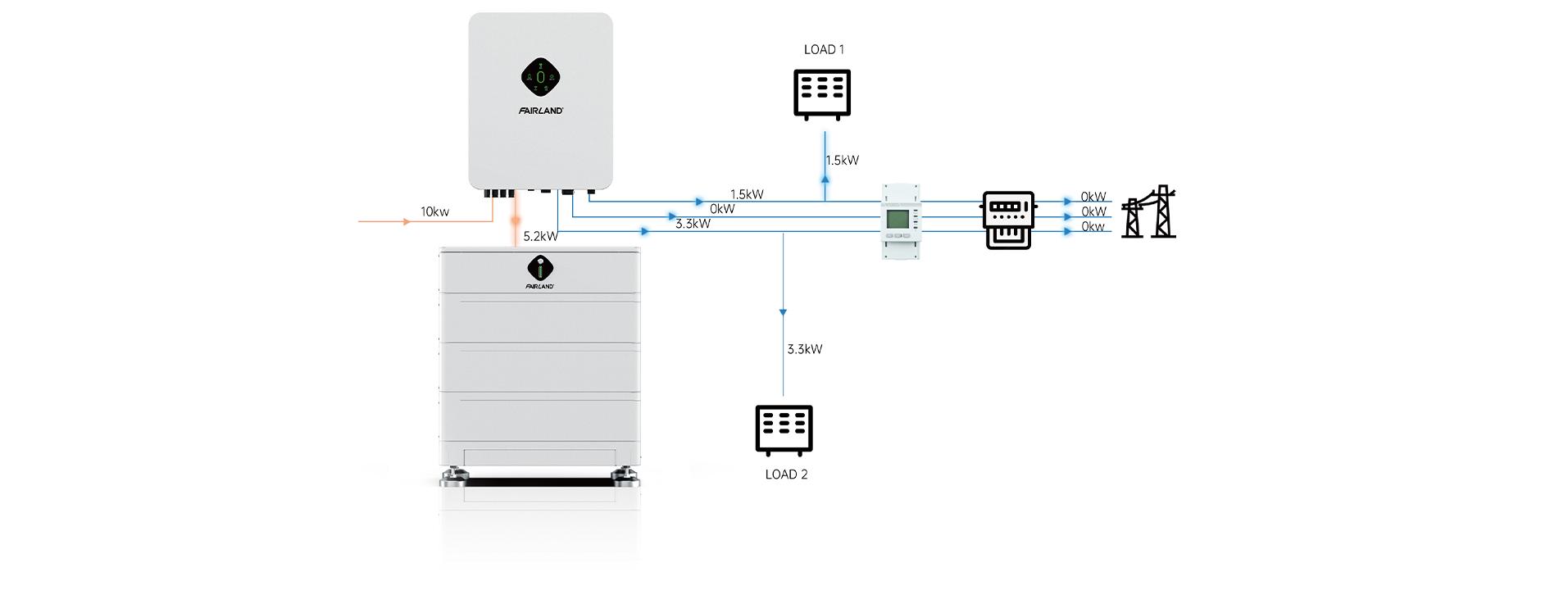

100% Unbalanced Load

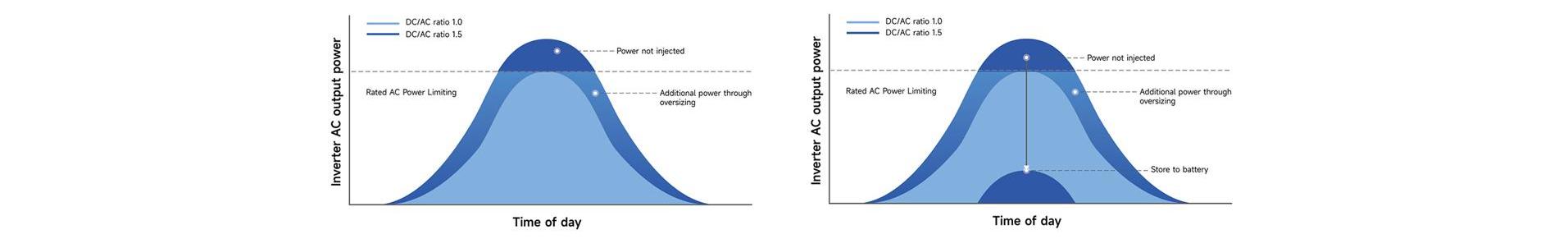

150% DC Input Oversizing

Model

Max. Recommended PV Power (Wp)

Rated PV Input Voltage (V)

Rated AC Output Power (W)

Battery Voltage Range (V)

Max. Charging/Discharging Current (A)

Max. Charging/Discharging Power (W)

XLiS3

10000

360

3000

80-460

30/30

6600/6600

XLiS3.6

10700

3680

XLiS4

11000

4000

XLiS5

12000

5000

XLiS6

13000

6000

Model

Max. Recommended PV Power (Wp)

Rated PV Input Voltage (V)

Rated AC Output Power (W)

Battery Voltage Range (V)

Max. Charging/Discharging Current (A)

Max. Charging/Discharging Power (W)

XLiT5

7500

600

5000

150-600

30/30

7500/6000

XLiT6

9000

6000

9000/7200

XLiT8

12000

8000

10600/10600

XLiT10

15000

10000

10600/10600

Model

Nominal Energy (kWh)

Usable Energy (kWh)*1

Depth of Discharge

Cell Type

Max. Module Configuration

Nominal Voltage (V)

HVB9.6

9.60

8.64

90.00%

LFP (LiFePO4)

192

HVB12.8

12.80

11.52

256

HVB16.0

16.00

14.40

320

HVB19.2

19.20

17.28

384

HVB22.4

22.40

20.16

448

HVB25.6

25.60

23.04

512
